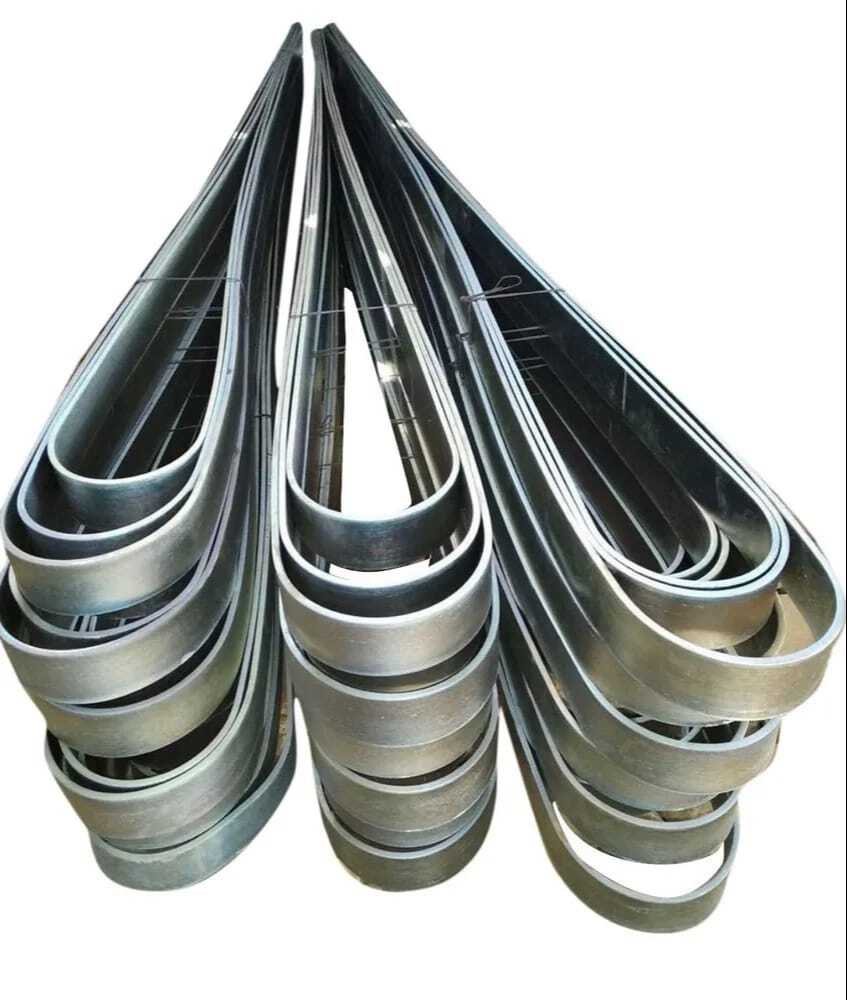

GI Strips

• Application
• Electrical Earthing in Commercial, Residential and Industrial Installations

• Color
• Silver/Grey

• Connection Type
• Bolt Connected/Clamp Type

• Connector Type
• Lug/Bolt/Clamp

• Dimension (L*W*H)
• Customizable, e.g. 25mm x 3mm x Required Length

• Efficiency
• Up to 99% Conductivity

• Feature
• Rust Resistant, Sturdy, High Strength

• Frequency (MHz)
• 50/60 Hz

• Humidity %
• Upto 95% Non-condensing

• Insulation Material
• Not Insulated

• Material
• Galvanized Iron (GI)

• Mounting Type
• Surface/Directly Underground

• Operating Temperature
• -10C to +55C

• Overheating Protection
• Other, Thermal Conductivity Ensures Protection

• Phase
• Single/Three Phase Compatible

• Product Type
• Earthing Strip

• Protection Level
• Other, Corrosion Resistant, High Conductivity

• Rated Voltage
• Suitable up to 415V AC

• Shape
• Rectangular Strip

• Size
• Available in 20mm, 25mm, 32mm Widths, Thickness 3mm, 5mm, 6mm etc.

• Surface Finish
• Hot Dip Galvanized, Smooth

• Weight
• Varies as per size (typically 1.8 5.0 kg/m)

• Application
• Earthing systems, Construction, Industrial and electrical grounding, Fencing, Cable tray supports

• Color
• Silver / Metallic Grey

• Connection Type
• Typically bolted or welded for earthing applications

• Connector Type
• Lug / clamp connectors (optional)

• Dimension (L*W*H)
• Width: 20-100 mm, Thickness: 2-6 mm, Length: As per requirement / standard coil size

• Feature
• High strength, Rust-resistant, Heavy zinc coating

• Humidity %
• Up to 95% RH

• Insulation Material
• Not insulated - bare GI

• Material
• Galvanized Iron (GI), Hot Dip Process

• Mounting Type
• Surface / Direct burial

• Operating Temperature
• -20C to +70C

• Output Type
• Strip / Flat output

• Product Type
• Hot Dip Galvanized GI Strip

• Protection Level
• Other, Corrosion-resistant (due to zinc coating)

• Shape
• Strip / Flat

• Size
• 20 mm x 3 mm, 25 mm x 3 mm, 25 mm x 6 mm, 50 mm x 6 mm or as per custom requirement

• Surface Finish
• Hot Dip Galvanized

• Weight
• As per requirement / coil weight standard (typically 1000 kg - 3000 kg)

• Application
• Earthing, Grounding in Electrical Installations

• Color
• Silver/Grey

• Connection Type
• Bolt Type/Clamp Connection

• Connector Type
• Earthing Clamp or Bolt Connector

• Dimension (L*W*H)
• Standard & Custom Sizes Available

• Efficiency
• High Conductivity

• Feature
• High Mechanical Strength, Durable

• Humidity %
• Up to 95% RH

• Insulation Material
• None (Bare Metal)

• Material
• Galvanized Iron (GI)

• Mounting Type
• Surface Mount

• Operating Temperature
• -10C to 55C

• Product Type
• GI Strip

• Protection Level
• Other, Corrosion Resistant

• Rated Voltage
• Up to 440V

• Shape
• Flat/Rectangular Strip

• Size
• As per requirement (commonly 25mm x 3mm, 25mm x 6mm, etc.)

• Surface Finish
• Hot Dip Galvanized

• Weight
• Custom as per requirement

• Application
• Earthing, Structural, Industrial and Construction Purposes

• Color
• Silver Grey

• Connection Type
• Bolt or Welded

• Connector Type
• Earthing Strip/Bolt

• Dimension (L*W*H)
• 600mm x 600mm x 6mm (typical, customizable)

• Feature
• High Durability, Rust Proof

• Humidity %
• 95% RH

• Material
• Galvanized Iron (GI)

• Mounting Type
• Ground / Embedded

• Operating Temperature
• -10C to +60C

• Product Type

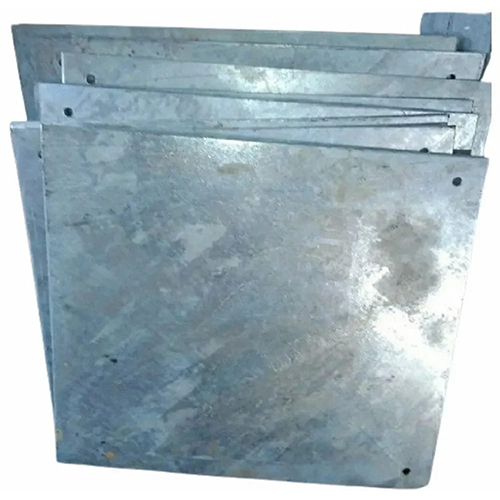

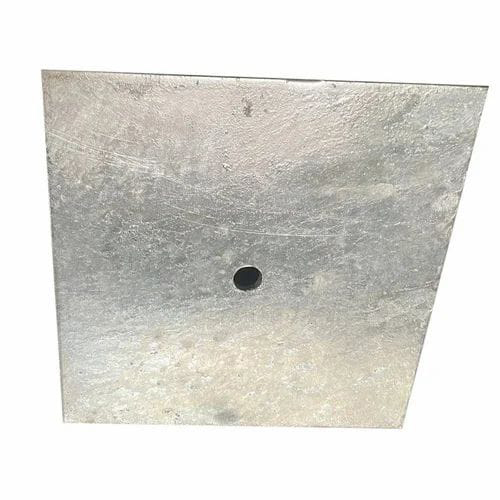

• GI Plate

• Protection Level
• Other, Corrosion Resistant

• Shape
• Rectangular

• Size
• Custom sizes available

• Surface Finish
• Hot Dip Galvanized

• Weight
• 5 kg to 100 kg (as per size and thickness)

• Application
• Electrical Earthing

• Color
• Silver/Grey

• Connection Type
• Bolt Connection

• Connector Type
• Copper Strip/Clamp

• Dimension (L*W*H)
• 600mm x 600mm x 6mm

• Efficiency
• High

• Feature
• Corrosion Resistant, High Conductivity

• Frequency (MHz)
• 50 Hz

• Humidity %
• Up to 95% RH

• IP Rating
• IP 65

• Material
• Galvanized Iron (GI)

• Mounting Type
• Direct Burial

• No Of Poles
• Single

• Operating Temperature
• -10C to 55C

• Overheating Protection
• YES

• Phase
• Single Phase

• Product Type

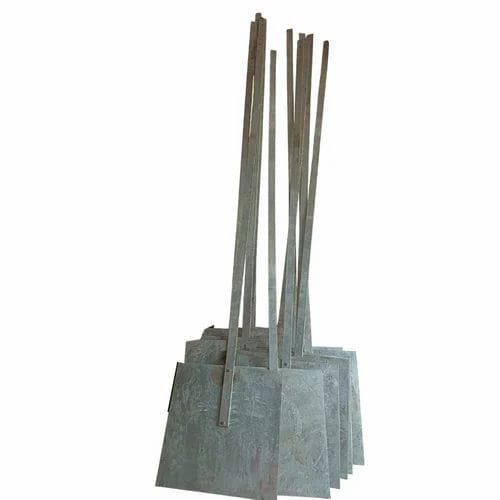

• Earthing Plate

• Protection Level
• Other, High

• Rated Voltage
• 230 V

• Shape
• Rectangular

• Size
• 600mm x 600mm

• Surface Finish
• Galvanized

• Weight
• 25 kg

• Application
• Earthing protection for electrical installations

• Color
• Copper Brown or Silver Grey

• Connection Type
• Bolt/Clamp

• Connector Type
• Copper/G.I. Strip or Rod

• Dimension (L*W*H)
• 600 mm x 600 mm x 3 mm (custom sizes available)

• Efficiency
• High Earthing Efficiency

• Feature
• Corrosion resistant, easy installation, long life

• Frequency (MHz)
• 50-60 Hz

• Humidity %
• Up to 95%

• Material
• Copper or Galvanized Iron (G.I.)

• Mounting Type
• Buried underground

• No Of Poles
• Single

• Operating Temperature
• -10C to +70C

• Output Type
• Grounding/Earthing output

• Phase
• Single Phase Compatible

• Product Type

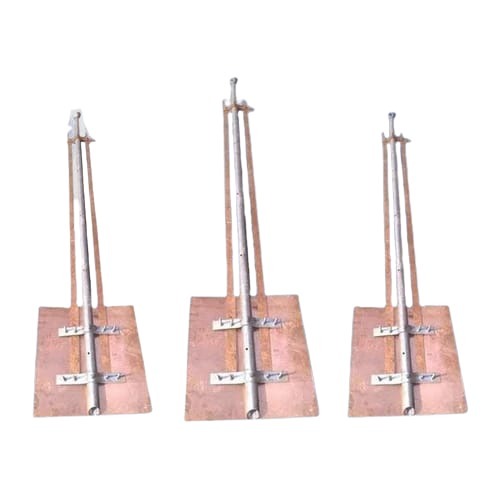

• Plate Earthing

• Protection Level
• Other, High

• Rated Voltage
• Up to 440V

• Shape
• Rectangular

• Size
• 600 mm x 600 mm x 3 mm

• Surface Finish
• Polished or Galvanized

• Weight
• 16-20 kg (typical)
