Earthing Electrode

Introducing our high-performance Earthing Electrode, a product designed to deliver unmatchable safety and grounding efficiency for your electrical systems. As a leading manufacturer and supplier with over 12+ years of remarkable expertise, we proudly offer our comprehensive range, including the GI Chemical Earthing Electrode and Copper Earthing Electrode, renowned for their incomparable durability and reliability. These electrodes ensure superior conductivity, outstanding corrosion resistance, and exceptional performance even under extreme conditions, standing apart from conventional alternatives. With their low maintenance design, extended lifespan, and remarkable capacity for maintaining consistent earthing, our electrodes provide an order of efficiency that is second to none. Additionally, their innovative composition prevents oxidation and enhances conductivity, ensuring unmatchable results for all your grounding needs. Available across India, we provide the supply ability to cater to domestic demands with efficiency and a limited-time special advantage for bulk orders. Choose the Earthing Electrode that redefines industry standards and experience the unparalleled features that make it the ultimate choice for your applications.

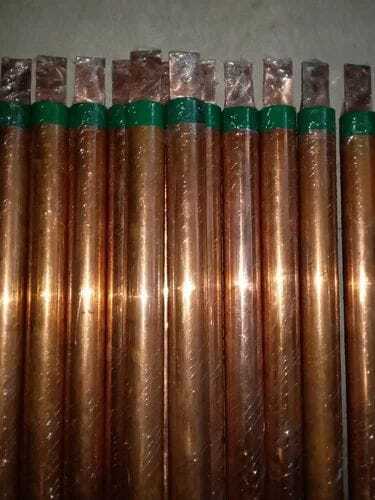

Copper Earthing Electrode

MOQ : 100 Pieces

  • Application
  • Electrical earthing for substations, telecom towers, residential & industrial buildings
  • Color
  • Copper Red
  • Copper Thickness
  • Minimum 250 microns (may vary by type)
  • Diameter
  • Typically 17 mm to 80 mm
  • Dimension (L*W*H)
  • Up to 3 m length (or as required), diameter varies
  • Function
  • Provides efficient and safe earthing for electrical installations
  • Life Span
  • 15 to 30 years (subject to soil and environmental conditions)
  • Material
  • other, High Purity Copper
  • Product Type
  • Copper Earthing Electrode
  • Purity
  • 99.9% copper
  • Shape
  • Cylindrical rod
  • Strength
  • High corrosion resistance and mechanical strength
  • Surface Treating
  • Polished copper surface
  • Tensile Strength
  • Approximately 200 MPa
  • Tolerance
  • 2 mm
  • Weight
  • Depends on size (typically 5 kg to 25 kg)

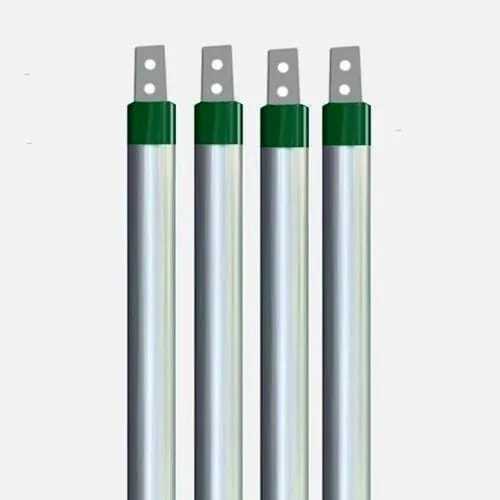

GI Chemical Earthing Electrode

MOQ : 100 Pieces

  • Application
  • Electrical Grounding for Residential, Industrial, Telecom & Power Sectors
  • Color
  • Silver Grey
  • Diameter
  • Commonly 50mm (32mm, 40mm available)
  • Dimension (L*W*H)
  • 50mm x 3m (L); 32mm & 40mm diameters also available
  • Function
  • Provides Low Resistance Electrical Grounding
  • Life Span
  • 10-15 years under normal soil conditions
  • Material
  • other, Galvanized Iron (GI)
  • Product Type
  • GI Chemical Earthing Electrode
  • Purity
  • GI material with >98% Zinc Coating
  • Shape
  • Cylindrical Pipe
  • Strength
  • High Conductivity with Strong Corrosion Resistance
  • Surface Treating
  • Hot Dip Galvanized
  • Tensile Strength
  • 400 MPa
  • Tolerance
  • 2%
  • Weight
  • Varies by size, typically 8-15 kg

Gi Chemical Earthing

MOQ : 100 Units

  • Application
  • Electrical Earthing in Residential, Commercial or Industrial Installations
  • Color
  • Silver/Grey
  • Copper Thickness
  • Not Applicable (GI Coating Only)
  • Diameter
  • 50 mm
  • Dimension (L*W*H)
  • 50 mm x 3 m (Diameter x Length)
  • Function
  • Safe Dissipation of Fault Currents
  • Life Span
  • Minimum 10-15 Years
  • Material
  • other, Galvanized Iron (GI)
  • Product Type
  • GI Chemical Earthing Electrode
  • Purity
  • Standard Industrial Grade GI
  • Shape
  • Cylindrical Pipe
  • Strength
  • High Corrosion Resistance, Good Conductivity
  • Surface Treating
  • Hot Dip Galvanized
  • Tensile Strength
  • 410 MPa (Approx)
  • Tolerance
  • 2 mm
  • Weight
  • Approx 15-18 kg

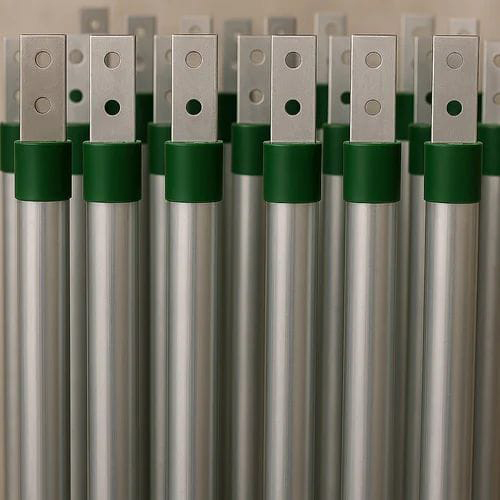

Gi Earthing

MOQ : 100 Units

  • Application
  • Earthing for electrical installations and equipment
  • Color
  • Silver Grey
  • Copper Thickness
  • N/A (GI product)
  • Diameter
  • N/A (Applicable for strip width/thickness only)
  • Dimension (L*W*H)
  • 25 mm x 3 mm (custom sizes available)
  • Function
  • Provides low-resistance grounding path for safety and protection
  • Life Span
  • More than 20 years
  • Material
  • other, Galvanized Iron (GI)
  • Product Type
  • GI Earthing Strip
  • Purity
  • High grade industrial GI
  • Shape
  • Flat Strip
  • Strength
  • High mechanical strength
  • Surface Treating
  • Galvanized
  • Tensile Strength
  • Above 350 MPa
  • Tolerance
  • 2 mm
  • Weight
  • Standard (varies as per length)

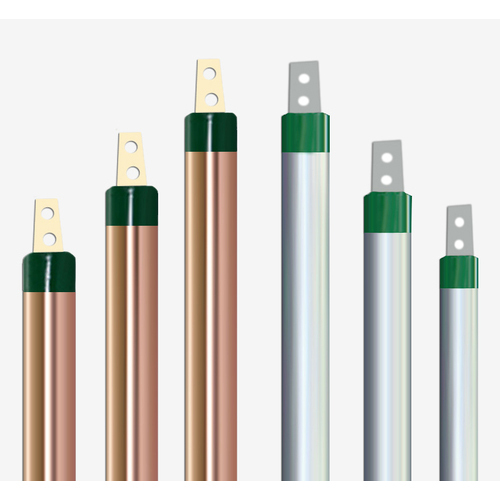

Chemical Earthing

MOQ : 100 Units

  • Application
  • Electrical grounding for substations, telecom, industrial & commercial buildings
  • Color
  • Metallic / Brown
  • Copper Thickness
  • 100 micron to 250 micron
  • Diameter
  • 50 mm, 76 mm, 80 mm (custom as per requirement)
  • Dimension (L*W*H)
  • 50 mm to 80 mm diameter; 2 m to 3 m length
  • Function
  • Provides safe ground dissipation of fault and leakage currents
  • Life Span
  • Up to 25 years
  • Material
  • other, Low carbon Steel, Copper coating
  • Product Type
  • Chemical Earthing Electrode
  • Purity
  • Copper purity > 99.9%
  • Shape
  • Cylindrical / Pipe
  • Strength
  • High mechanical strength, corrosion resistant
  • Surface Treating
  • Galvanized / Copper bonded
  • Tensile Strength
  • Below 600 N/mm2
  • Tolerance
  • 5%
  • Weight
  • 22-38 kg (as per size)
