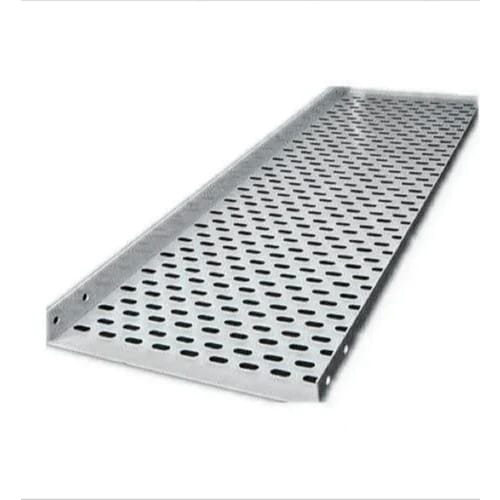

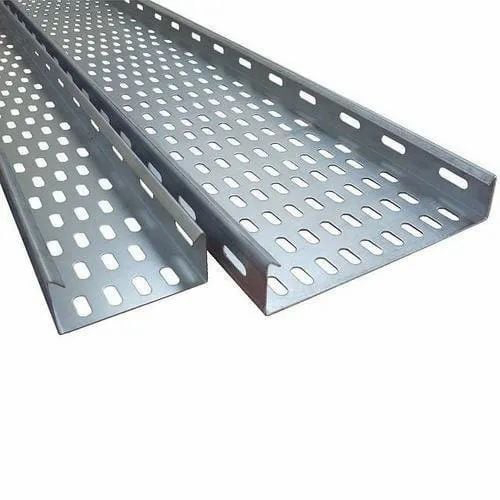

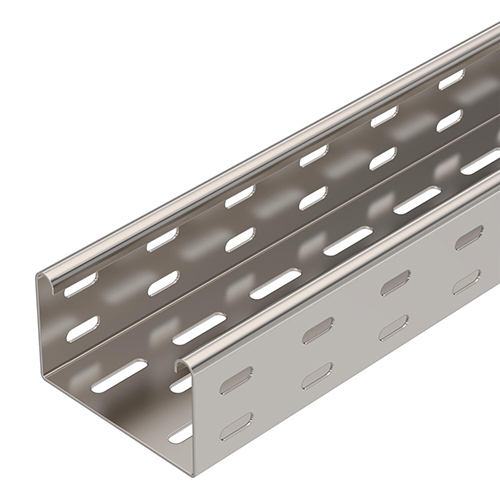

Cable Tray

• Color
• Other, Silver or as per finish

• Conductor Material
• Other, Not applicable (used for cable support)

• Deflection
• Less than 1/100th of span under working load

• Dimension (L*W*H)
• 2500 mm x (50-900) mm x (15-150) mm

• Length
• 2500 mm

• Material
• Other, Mild Steel, Pre-Galvanized Sheet, or Stainless Steel

• Max. Working Load
• Up to 100 kg/m (varies with size & support span)

• Product Type
• Other , Perforated Cable Tray

• Side Rail Height
• 15 mm to 150 mm

• Standard Thickness
• 1.2 mm, 1.6 mm, 2.0 mm, 2.5 mm, 3.0 mm

• Surface Finish
• Other, Hot-Dip Galvanized, Pre-Galvanized, Epoxy Coated, Powder Coated, or Painted

• Weight
• As per dimension and material, approx. 5-30 kg/pcs

• Width
• 50 mm to 900 mm

• Color
• Other, Silver/Grey

• Conductor Material
• Steel

• Deflection
• Less than 5 mm

• Dimension (L*W*H)
• 2500 mm x 150 mm x 50 mm

• Length
• 2500 mm

• Material
• Other, Mild Steel

• Max. Working Load
• 80 kg/m

• Product Type
• Other , Perforated Cable Tray

• Side Rail Height
• 50 mm

• Standard Thickness
• 2 mm

• Surface Finish
• Other, Galvanized

• Weight
• 7.5 kg

• Width
• 150 mm

• Color
• Other, Silver

• Conductor Material
• Steel

• Deflection
• 5 mm

• Dimension (L*W*H)
• 2500 x 150 x 75 mm

• Length
• 2500 mm

• Material
• Other, Mild Steel

• Max. Working Load
• 80 kg/m

• Product Type
• Other , Perforated Cable Tray

• Side Rail Height
• 75 mm

• Standard Thickness
• 2.0 mm

• Surface Finish
• Other, Hot Dipped Galvanized

• Weight
• 12.5 kg

• Width
• 150 mm

• Color
• Other, Silver

• Conductor Material
• Steel

• Deflection
• 10 mm at max load

• Dimension (L*W*H)
• 2500 mm x 150 mm x 50 mm

• Length
• 2500 mm

• Material
• Other, Galvanized Iron (GI)

• Max. Working Load
• 30 kg/m

• Product Type
• Other , Perforated Cable Tray

• Side Rail Height
• 50 mm

• Standard Thickness
• 1.6 mm

• Surface Finish
• Other, Pre-galvanized / Hot-Dip Galvanized

• Weight
• Approx. 4.2 kg/m

• Width
• 150 mm

• Color
• Other, Silver/Metallic

• Conductor Material
• Other, Mild Steel (MS)

• Deflection
• Less than 1/100th of span

• Dimension (L*W*H)
• 2500 mm x Custom Width x Custom Height

• Length
• 2500 mm (Standard or as per requirement)

• Material
• Other, Mild Steel (MS) with Hot Dip Galvanized (GI) coating

• Max. Working Load
• Up to 150 kg/m (depending on dimensions and support span)

• Product Type
• Other , Perforated Cable Tray

• Side Rail Height
• 15 mm to 150 mm

• Standard Thickness
• 1.2 mm to 3.0 mm

• Surface Finish
• Other, Hot Dip Galvanized

• Weight
• Varies as per dimensions, typically 5-25 kg per tray

• Width
• 50 mm to 900 mm (Customizable)

• Color
• Other, Metallic / Silver-Grey

• Conductor Material
• Other, Not Applicable (cable tray only)

• Deflection
• Less than 1/100th Span

• Dimension (L*W*H)
• 2500 mm x 50-1000 mm x 25-150 mm

• Length
• 2500 mm

• Material
• Other, Mild Steel (MS), Pre-Galvanized, Hot Dip Galvanized, Stainless Steel (SS), Aluminum

• Max. Working Load
• Up to 150 kg/m depending on size and material

• Product Type
• Other , Perforated Type Cable Tray

• Side Rail Height
• 25 mm to 150 mm

• Standard Thickness
• 1.2 mm, 1.6 mm, 2.0 mm, 2.5 mm

• Surface Finish
• Other, Pre-Galvanized, Hot Dip Galvanized, Powder Coated, Painted

• Weight
• Varies as per dimension and material (typically from 2.5 kg/m to 15 kg/m)

• Width
• 50 mm to 1000 mm
